CASE ROTATOR

Contact for Quote

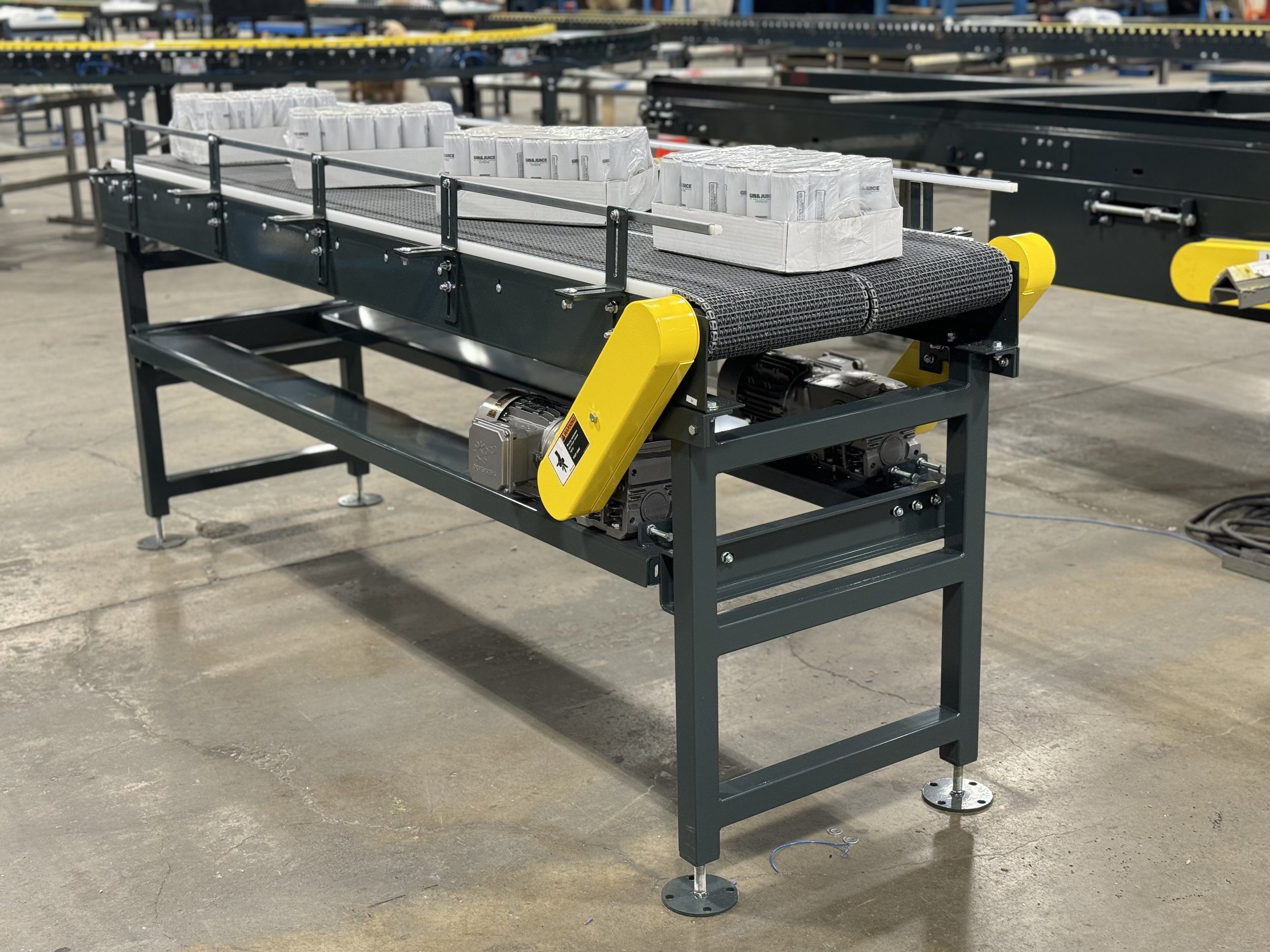

This “Dual-Lane” Mat-Top Belt Conveyor is designed to gently rotate cases, boxes, or compacted bags conveyed onto a pallet pattern forming conveyor. The general application would be as an infeed conveyor to a palletizing cell. This Unit will rotate product at a higher rate of speed and gentler than a bump turn device.

• DUAL LANE

• HIGH SPEED

• UNDERSLUNG MOTOR MOUNT

• TEFC GEARMOTORS

• 90/180 FPM

Standard Features

• 26" Usable Width (Application Specific) x 4' long

• (2) Timing Belt Driven End Drives (Underslung)

• (2) Inverter Ready 1 HP TEFC Gearmotors (460VAC/3MPH)

• 90/180 FPM

• Box Channel Slider Bed with UHMW Belt Support

• (2) 12" wide Mat-Top Belts with Friction Pad Conveying Surface

• End Idler Sprockets with Flange Mounted Bearings

• Cantenary Belt Take-up

• Adjustable H-Stands

• Powder Coat (Many RAL Colors Available)

OPTIONS

• Special Finishes

• Washdown Duty Construction

• Frequency Drive Controllers (Mounted and Wired to Motors)
