PALLET LIFT AND ROTATE

(IRON CROSS)

Contact for Quote

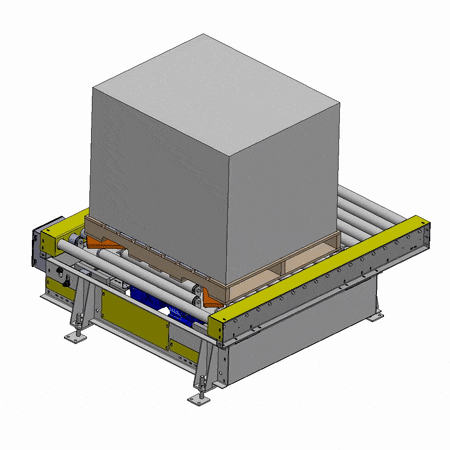

An Iron Cross is a Motorized/Air Operated Pallet Load reorientation unit. This device is typically used in a pallet conveyor system to re-orient a pallet load for strapping, labeling, or to facilitate load pick-up. A device of this nature is commonly designed for use with GMA or CHEP style pallets.

• LOADS UP TO 100 LBS

• AIR OPERATED POSITIVE LIFT

• MOTORIZED LOAD ROTATION 90 OR 180 DEGREES

• BUILT INTO 251 CDLR OR DRAG CHAIN CONVEYORS

STANDARD FEATURES

• Application Specific Usable Width and Length

• Underslung or Top Mounted Chain /Sprocket Drive

• Inverter Ready TEFC Gearmotor (HP and Speed Application Specific)

• 8"/8" Formed Channel Frame with Chain Guard (Both Sides)

• 2 1/2" Dia x 11ga Plain or Galvanized Steel Rollers (2) Welded Sprockets, Greased Packed/Sealed Bearings

• Adjustable H-Stand Supports

• Powder Coat (Many RAL Color Choices Available)

LIFT AND ROTATE UNIT FEATURES

• Air Operated Lift with Positive Lifting Linkage x 3" Net Lift

• Double Solenoid Valve (24VDC Standard)

• Up/Down Proximity Switch Detection (24VDC Standard)

• Shared Filter Regulator Lubricator with Lockout

• Motorized Load Rotation 90 or 180 Degrees

• Timing Belt Drive

• 1HP TEFC Brake/Gearmotor (Premium Duty)

• 2pair of Rotation Position Detection Proximity Switches (24VDC)

• Devices Wired to Terminal Box
