CHAIN TRANSFER

Contact for Quote

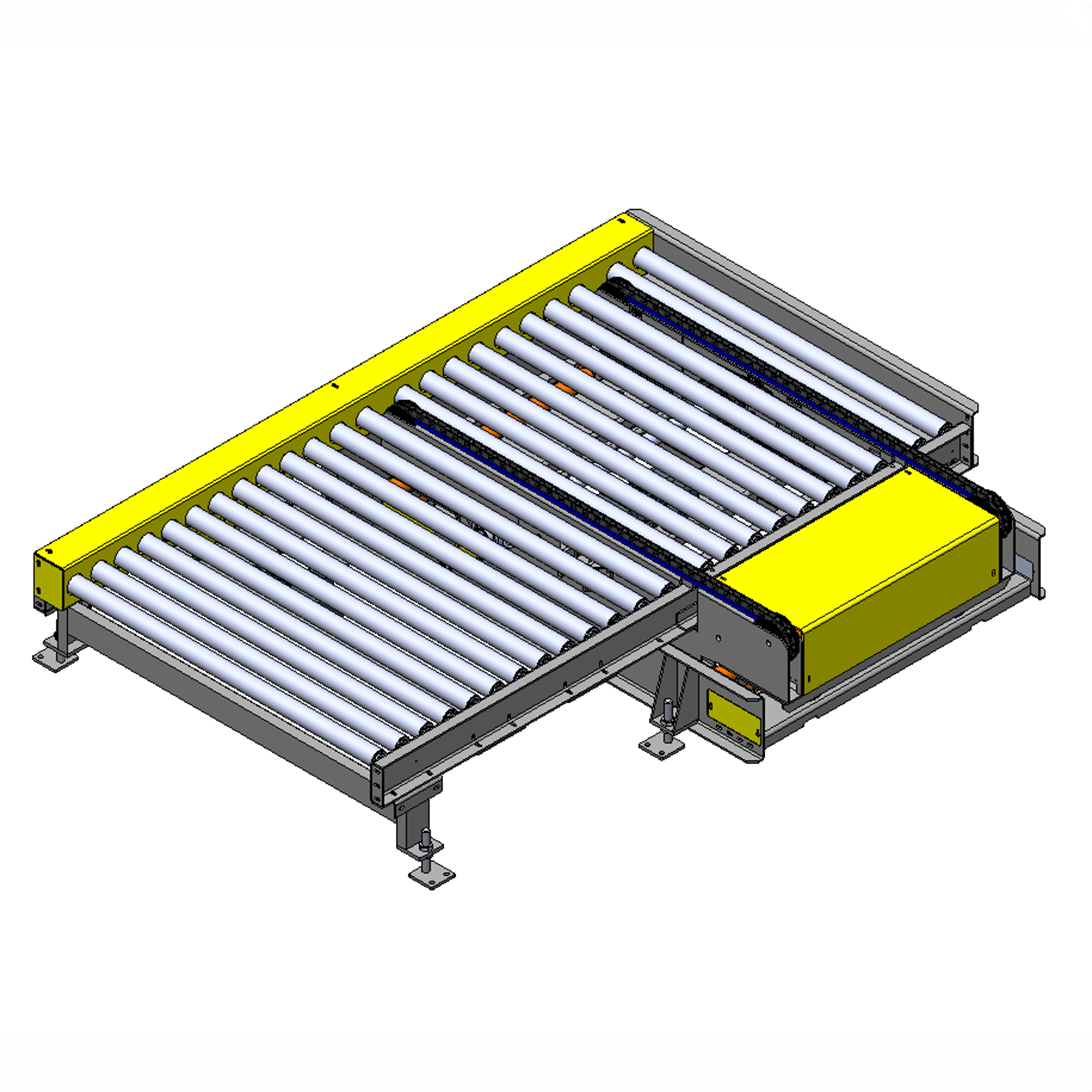

Pop Up Chain Transfer for pallet loads up to 3000lbs. Embeds into roller conveyor with external or thru frame. 2, 3 or more strands. Transfer full loads 90 Degrees

• LOADS UP TO 3000 LBS

• EMBEDS INTO ROLLER CONVEYOR

• EXTERNAL OR THRU FRAME

• 2, 3 or MORE STRANDS

• TRANSFERS FULL LOADS 90 DEGREES

NOW AVAILABLE with Motorized Lift for Airless Operation. Ideal for Freezer Applications.

STANDARD FEATURES

• Center Drive with Integral Take-Ups

• Inverter Ready Gearmotor (230V/460VAC)

• 30 to 60 FPM Per Application

• Channel Frame with Tyvar Chain Guides

• #2060 High Sidebar Chair

• Fixed End Idler Sprockets with Internal Bearings

• Motorized Lift with Positive Lift Linkage & Brake

• Position Detection Proximity Switches

• Adjustable Feet for Required Elevation

• Powder Coat (Many RAL Color Choices Available)
