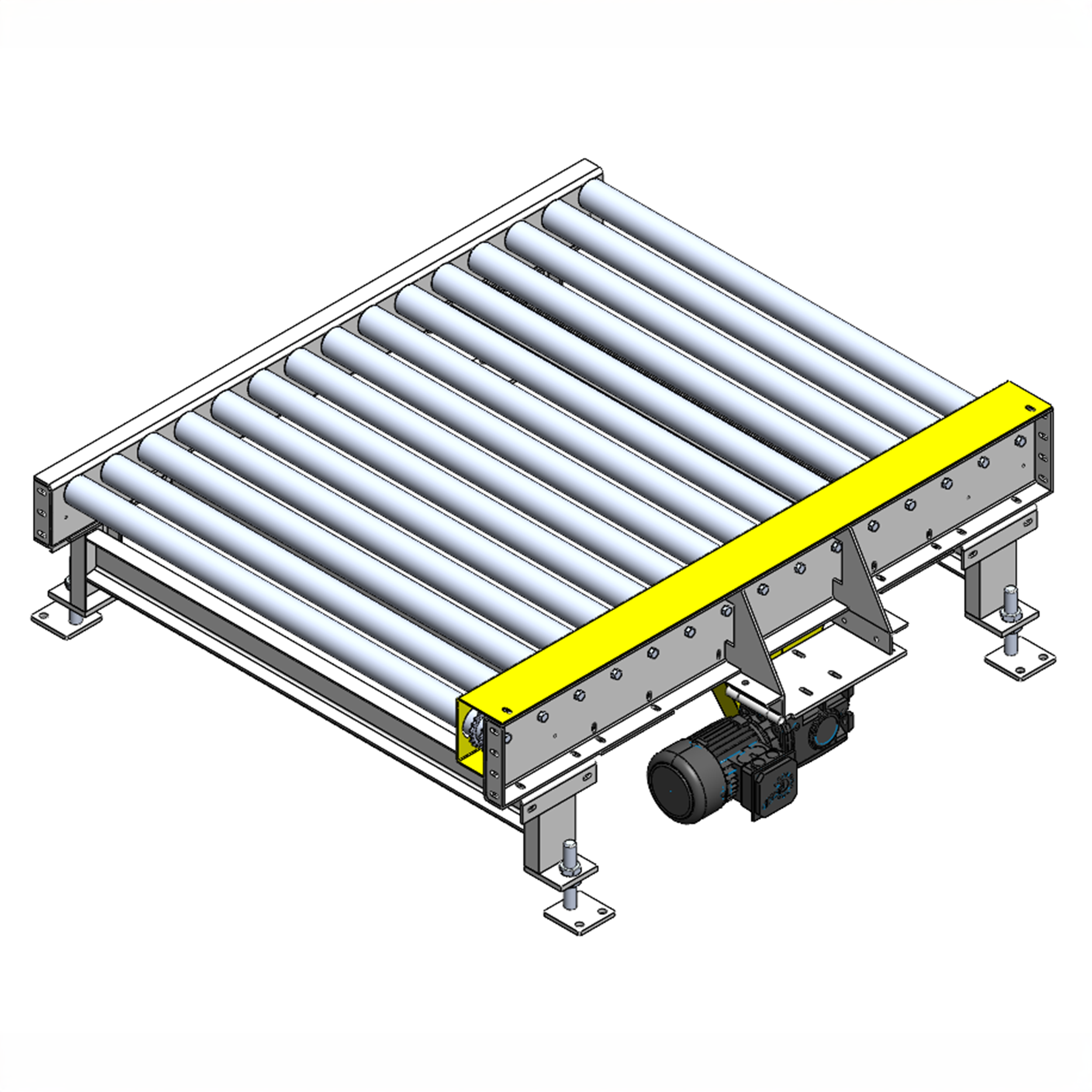

CHAIN DRIVEN LIVE ROLLER

Contact for Quote

Chain Driven Live Roller conveyors features rugged construction which makes it suitable for heavy loads up to 3000lbs such as pallets, drums, slave boards, and castings. Positive drive is ideal for use in oily, wet or contaminated environments. Powder Coat finish in choice of 13 standard colors.

STANDARD SIZES

1.9”, 2.5”, 2-5/8” and 3.5” Standard

FEATURES

• 12" - 60" Effective Width

• Chain Sprocket (Underslung, Top Mount, or Side Mount)

• Standard Inverter Ready TEFC Gearmotor (230V/460VAC)

• 30-60 FPM (Standard)

• 8"/6"x2 Formed Side Frames - Both Sides

• 2-1/2 Diameter x 11ga Galvanized or 2-5/8" 7ga Plain Steel with Springloaded 11/16" Hex Axel. (2) Welded Sprockets, Grease Packed/Sealed Bearings

• Standard Roller Centers 3 1/4", 4, 4 1/2", 5", 6" and 7 1/2" on Center

• Structural Steel Supports

• Powder Coat (Many RAL Color Choices Available)

OPTIONS

• Funnel Guides

• Tread Plates Between Rollers

• End Stops

• Blade Stops

• Forklift Guarding

• Multiple Motor Mounting Options
