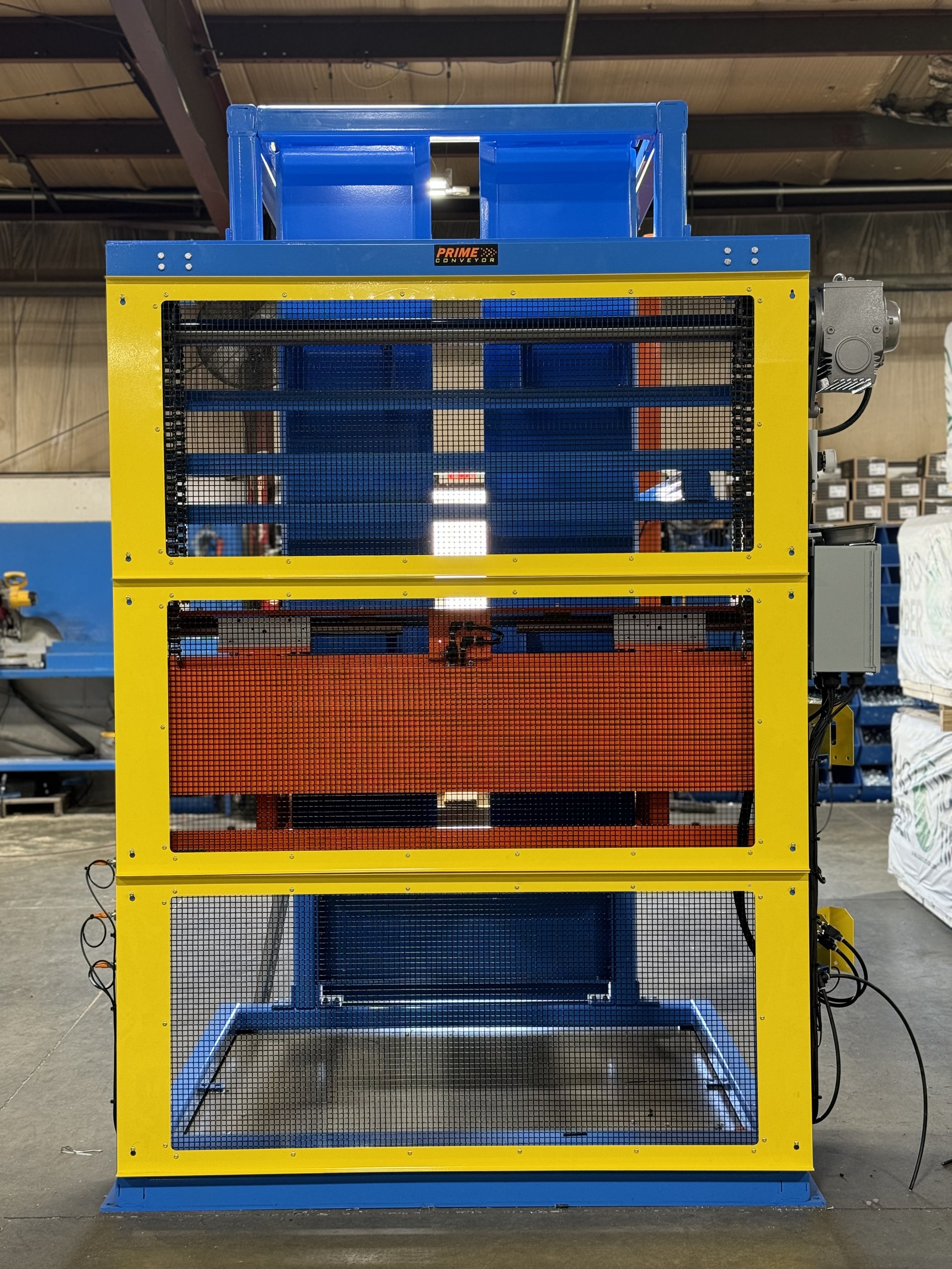

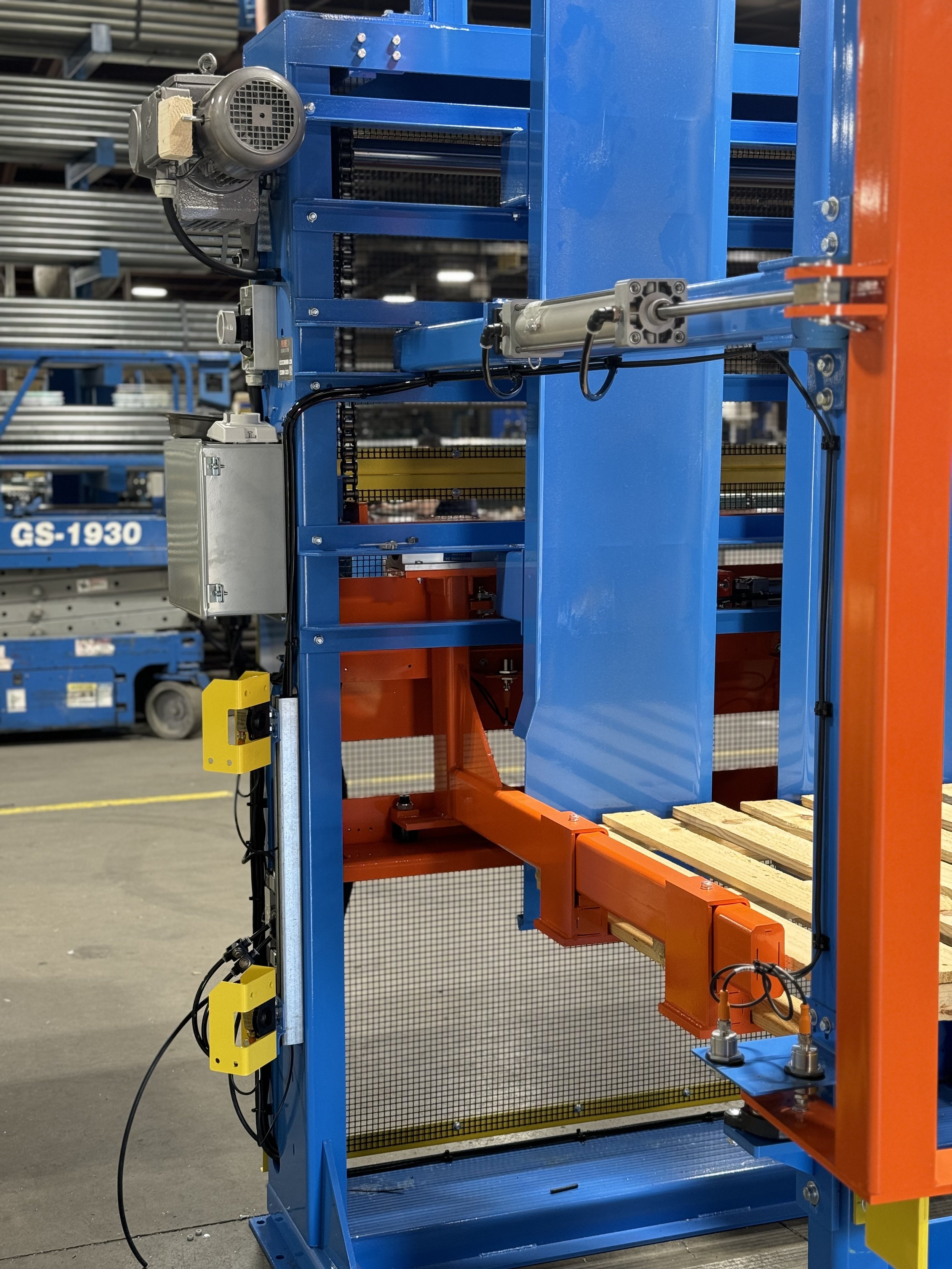

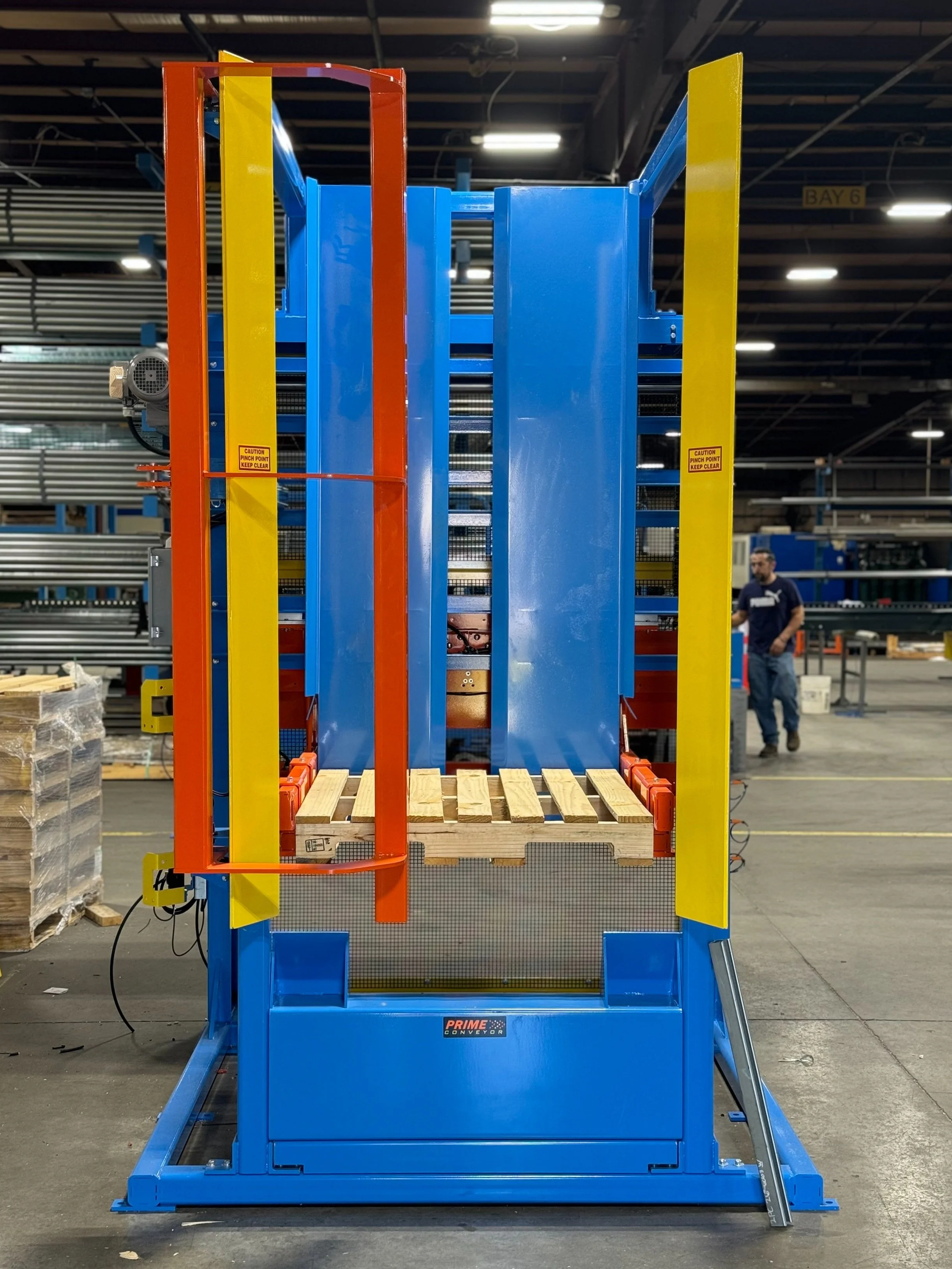

MOTORIZED PALLET DISPENSER

Pallet Dispenser designed to work with many types of conveyor equipment and pallet types.

• SUITABLE FOR GMA/CHEP/EURO PALLETS

• RUGGED MOTORIZED VERTICAL LIFT

• STORAGE FOR UP TO 15 PALLETS

• COUNTER-WEIGHTED CHAIN LIFT

• PMEUMATIC STORAGE ARMS

• SIDE OR THRU DISCHARGE

STANDARD FEATURES

• Chain Sprocket Lift Escapement Carriage with Counter Weight Take Up

• 1HP TEFC Brake-Gearmotor

• Capable of 3 Dispensing Cycles Per Minute

• Welded/Structural Channel Construction with Linear Travel Guides

• Air Operated/Linear Guided Air Cylinder Actuated Storage Forks

• Double Sol Valve + Position Detection Proximity Switches + Filler/Regulator

• Elevation per Application

• 3 Lift Carriage Position Detection Proximity Switches

• 2 Lift Carriage Over-Travel Detection Limit Switches

• Powder Coat (Many RAL Colors Available)

OPTIONS

• Pull Cord Operated Loading Gate

• Devices Wired to Terminal Box

• Control Panel

• Operator Station

• Side Guards
